stereonet

stereonet(mat::AbstractArray{T,2}; schmidt=true, wulff=false, kw...) where T<:Real

Plot a stereonet map in either Schmidt or Wulff projection.

• mat: A GMTdataset or a matrix with two columns: azimuth and plunge.

• schmidt: If true, use Schmidt projection. If false, use Wulff projection.

• wulff: If true, use Wulff projection.

• kw: Additional keyword arguments to pass to the plot function. Namely, figsize, figname, and line & marker settings (see plots manual for details on them).

In case the produced figure is still not satisfactory, you can make one by yourself. For that use the Dv, Dp = _stereonet(mat) function to get the fault planes and poles. A good place to start is the stereonet function itself. Type @edit GMT.stereonet([0 0]) to see the code.

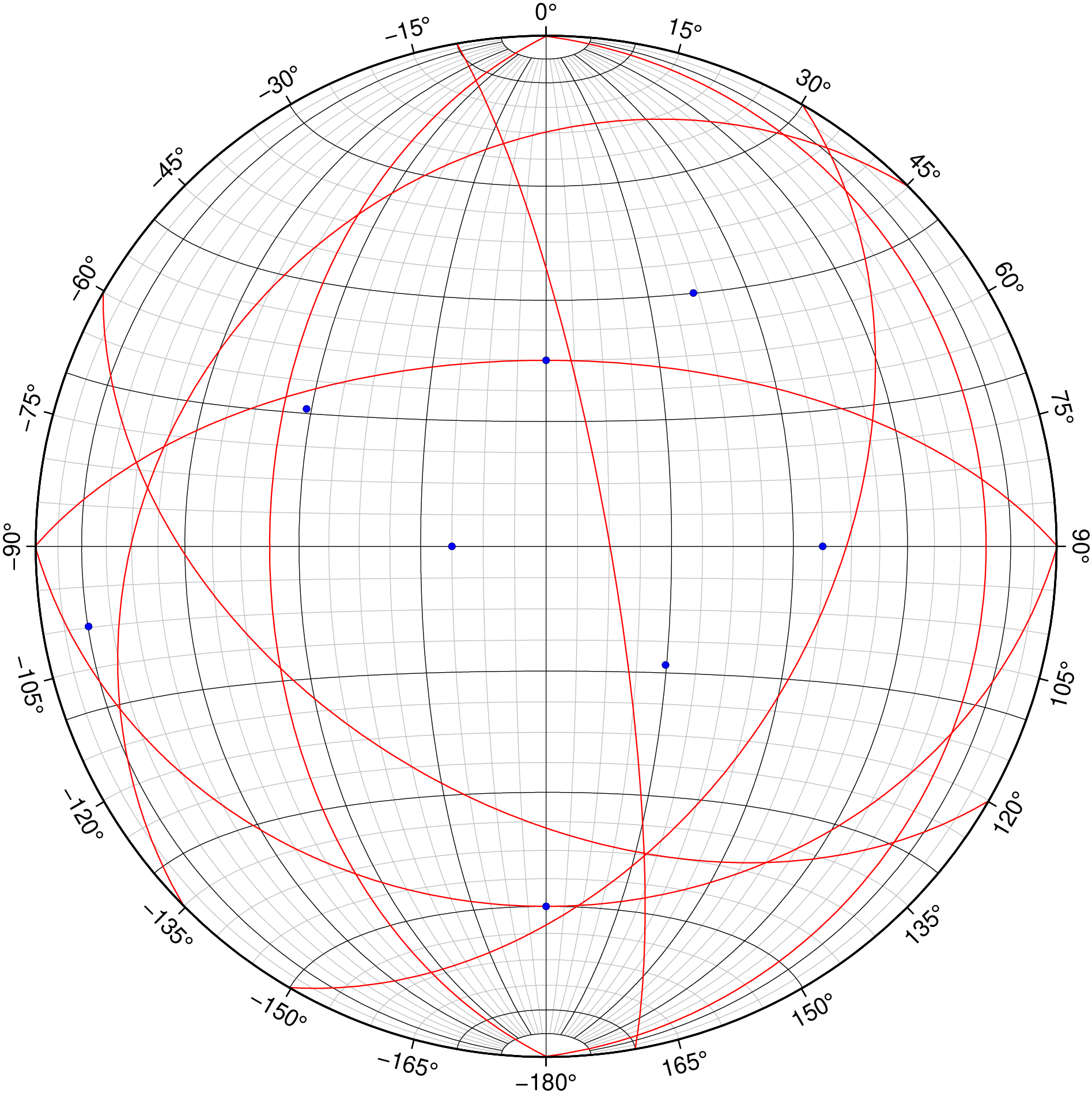

Example

using GMT

stereonet([90 30; 180 45; 270 60; 0 15; 30 45; 120 48; 225 27; 350 80])
