Seafloor Crustal Age
The available resolutions for this grid are:
"01d", "30m", "20m", "15m", "10m", "06m", "05m", "04m", "03m", "02m", "01m"
. Where the suffixd
,m
ands
stand for arc-degrees, arc-minutes, and arc-seconds. See also the manual of remotegrid for information about the grid registrations.
On first usage, the grids are downloaded to the user ./gmt/server/...
directory. On later usages, the grid(s) are loaded from that local directory.
The default color palette table (CPT) for this dataset is earthage.cpt_. It’s implicitly used when passing in the file name of the dataset to any grid plotting method if no CPT is explicitly specified.
Refer to earth_age for more details about technical detail, available resolutions, sizes, version information and references.

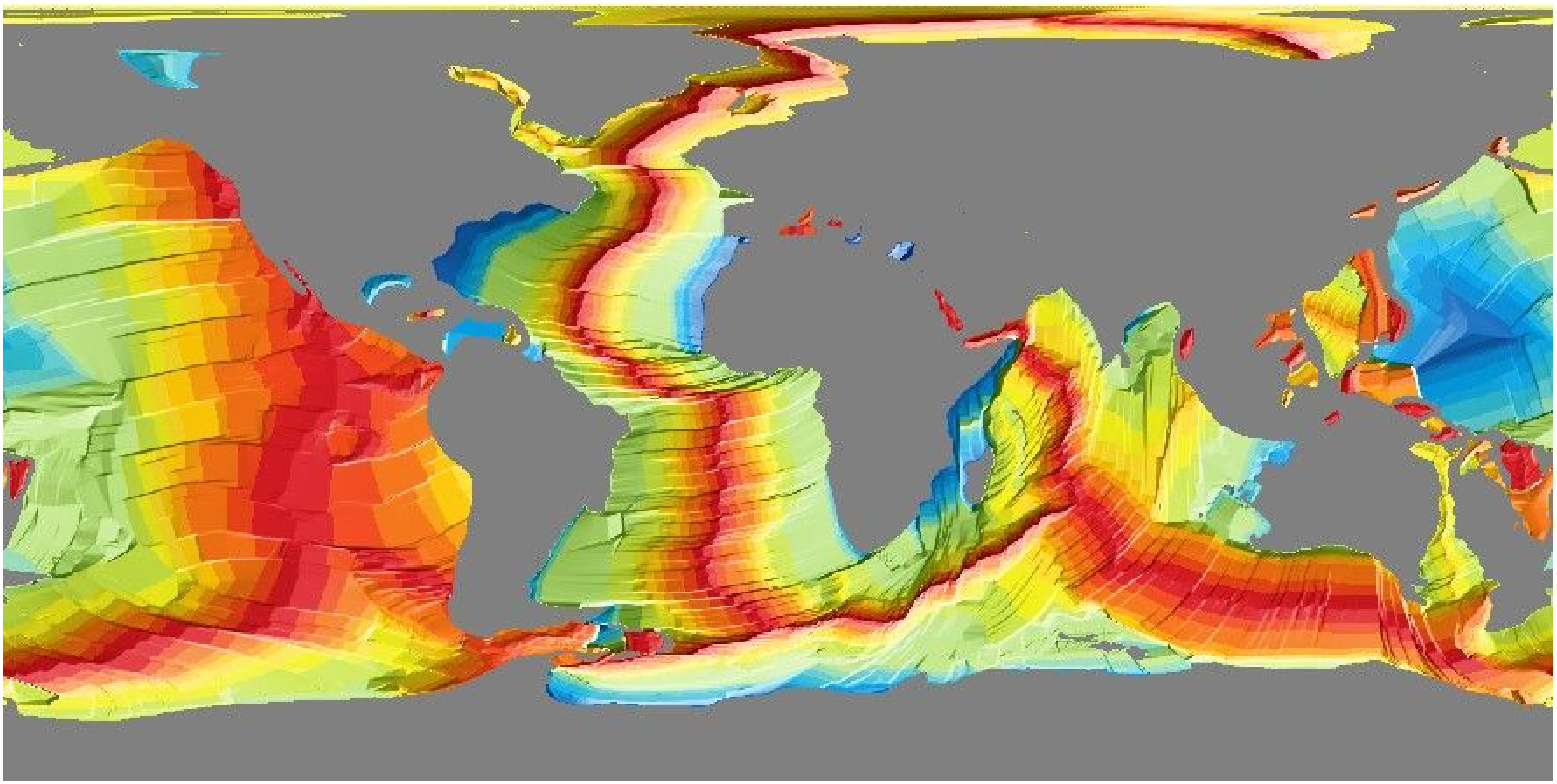

Example
G = gmtread(remotegrid("age", res="6m"))
viz(G, shade=true)
These docs were autogenerated using GMT: v1.20.0
