Triplot
triplot(in::Matrix; onlyedges::Bool=false, noplot::Bool=false, kw...)
Plots the 2-D triangulation or Voronoi polygons defined by the points in a matrix
in
: The input data. Can be either a Mx2 or Mx3 matrix.noplot
: Return the computed Delaunay or Veronoi data instead of plotting it (the default).onlyedges
: By default we compute Delaunay tringles or Veronoi cells as polygons. Use this option asonlyedges=true
to compute multiple line segments.region
: Sets the data region (xmin,xmax,ymin,ymax) forvoronoi
(required). If not provided we compute it fromin
.voronoi
: Compute Voronoi cells instead of Delaunay triangles (requiresregion
).kw...
: keyword arguments used in the $plot$ module (ignore ifnoplot=true
).
Returns
A GMTdataset if noplot=true
or $nothing$ otherwise.
Example:
triplot(rand(5,2), voronoi=true, show=true)
triplot(rand(5,3), lc=:red, show=true)

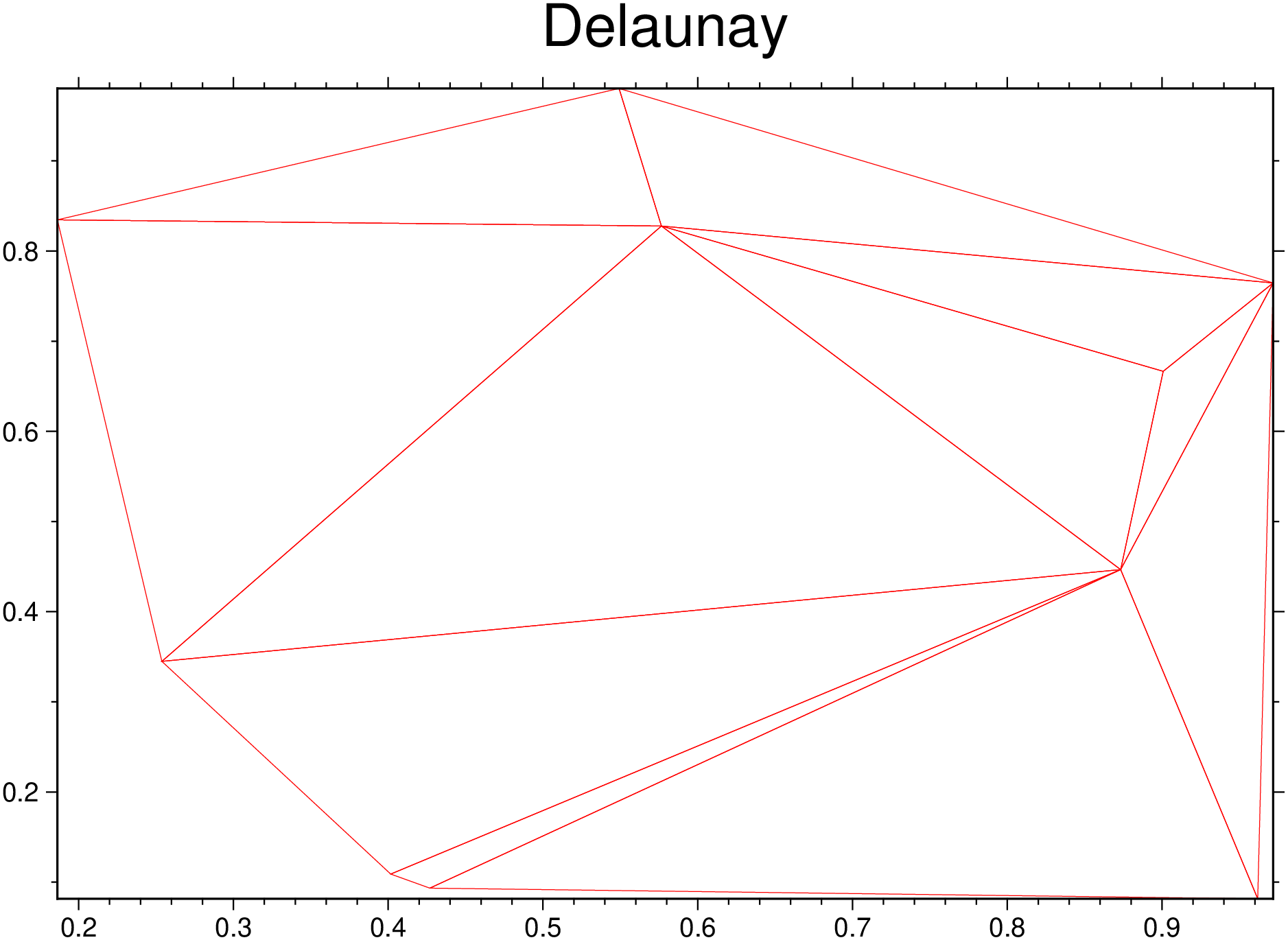

Delaunay triangulation
using GMT
triplot(rand(10,3), lc=:red, title="Delaunay", show=true)
