frame

  • B | frame | axes | xaxis | xaxis2 | yaxis | ...

Set map Axes parameters. They are specified by a keyword and a named tuple (but see [1])

frame=(axes=..., corners=..., xlabel=..., ylabel=..., annot=..., flipx=..., etc)

or separated on a per axes basis by using specific xaxis, yaxis and zaxis that share the same syntax as the generic frame option. The xaxis2 and yaxis2 apply when dealing with secondary axes.

Before the rest, note that several modules have axes default settings (scatter, bar, etc...) but if no axes is desired, just use axes=:none. Also useful is the axes=:same to repeat the previously set (from another call) axes specification.

By default, all 4 map boundaries (or plot axes) are plotted and two annotated. To customize, use the axes keyword that takes as value a tuple with a combination of words. Axes are named left, bottom, right, top and, for the 3D maps, up. Next we have three categories of axes: the annotated and ticked, the ticked and those with no annoations and no tick marks. We call them full, ticks and bare and combine with the axes name using an underscore to glue them. Hence left_full means draw and annotate left axis, whilst top_bare means draw only top axis. The full combination is left|bottom|right|top|up_full|ticks|bare. To not draw a boundary, simply omit the name of it in tuple. Note that the short one single char naming used by GMT is also valid. E.g. axes=:WSn will draw and annotate left and south boundaries and draw but no ticks or annotations the top boundary. Two special cases are provided by the frame=:none and frame=:noannot that do not plot any axes or just plot but do not annotate or tick them respectively.

If a 3-D base map is selected with view and J=:z, by default a single vertical axes will be plotted at the most suitable map corner. Override the default by using the keyword corners and any combination of corner ids 1234, where 1 represents the lower left corner and the order goes counter-clockwise.

Use cube=true to draw the outline of the 3-D cube defined by region this option is also needed to display gridlines in the x-z, y-z planes. Note that for 3-D views the title, if given, will be suppressed. You can paint the interior of the canvas with fill=fill where the fill value can be a color or a pattern.

Use noframe=true to have no frame and annotations at all [Default is controlled by the codes].

Optionally append pole="plon/plat" (or pole=(plon,plat)) to draw oblique gridlines about specified pole [regular gridlines]. Ignored if gridlines are not requested (below) and disallowed for the oblique Mercator projection.

xx and yy axes grow from left to right and bottom to top (zz axis too). This the default but that can be changed with the keywords flipx=true, flipy= and flipz=. Alternative names are xflip, yflip, zflip.

For Cartesian plots the slanted=angle allows for the optional angle to plot slanted annotations; the angle is with respect to the horizontal and must be in the -90 <= angle <= 90 range only. This applies to the x-axis only, with the exception of the slanted=:parallel form that plots the y annotations parallel to y-axis.

To add a plot title do title="My title". The Frame setting is optional but can be invoked once to override the above defaults.

GMT uses the notion of primary (the default) and secondary axes. To set an axes as secondary, use secondary=true (mostly used for time axes annotations).

The xaxis, yaxis and zaxis specify which axis you are providing information for. The syntax is the same as for the axes keyword but allows fine tuning of different options for the 4 (or 5) axes. In this case to flip the positive direction of one particular axis we use flip=true. Don't need to explicitly say which axis because the function where it's used already knows that.

To add a label to an axis use label="Label text" if using the xaxis etc form, or use the xlabel, ylabel and zlabel keywords in the common frame tuple of options.

Still a third alternative to change the axis dirs is the option flipaxes=:x|:y|:z|:xy but note that so far this option is to be used mainly when creating subplot's

Use Yhlabel=true to force a horizontal label for y-axes (useful for very short labels).

If the axis annotation should have a leading text prefix (e.g., dollar sign for those plots of your net worth) you can add prefix="prefix" For geographic maps the addition of degree symbols, etc. is automatic (and controlled by the GMT default setting FORMAT_GEO_MAP). However, for other plots you can add specific units by adding label_unit="unit"

Annotations, ticks and grid intervals are specified with the annot, ticks and grid keywords, which take as value the desired stride interval. As an example, annot=10 means annotate at spacing of 10 data units. Alternatively, for linear maps, we can use the special value :auto annotations at automatically determined intervals.

  • annot=:auto, grid=:auto plots both annotations and grid lines with the same spacing,

  • annot=:auto, ticks=:auto, grid=:auto adds suitable minor tick intervals,

  • grid=:auto plots grid lines with the same interval as if ticks=:auto was used.

The optional phase_add=xx and phase_sub=xx shifts the annotation interval by tht xx amount (positive or negative).

The optional annot_unit indicates the unit of the stride and can be any of the ones listed below:

  • :year or :Y (year, plot with 4 digits)

  • :year2 or :y (year, plot with 2 digits)

  • :month or :O (month, plot using FORMAT_DATE_MAP)

  • :month2 or :o (month, plot with 2 digits)

  • :ISOweek or :U (ISO week, plot using FORMAT_DATE_MAP)

  • :ISOweek2 or :u (ISO week, plot using 2 digits)

  • Gregorian_week or :r (Gregorian week, 7-day stride from start of week TIME_WEEK_START)

  • :ISOweekday or :K (ISO weekday, plot name of day)

  • :date or :D (date, plot using FORMAT_DATE_MAP)

  • :day_date or :d (day, plot day of month 0-31 or year 1-366, via FORMAT_DATE_MAP)

  • :day_week or :R (day, same as d, aligned with TIME_WEEK_START)

  • :hour or :H (hour, plot using FORMAT_CLOCK_MAP)

  • :hour2 or :h (hour, plot with 2 digits)

  • :minute or :M (minute, plot using FORMAT_CLOCK_MAP)

  • :minute2 or :m (minute, plot with 2 digits)

  • :second or :S (second, plot using FORMAT_CLOCK_MAP)

  • :second2 or :s (second, plot with 2 digits).

Note for geographic axes m and s instead mean arc minutes and arc seconds. All entities that are language-specific are under control by GMT_LANGUAGE.

For custom annotations and intervals, let intervals be given as custom="intfile", where intfile contains any number of records with coord type [label]. Here, type is one or more letters from a or i, f, and g. For a or i you must supply a label that will be plotted at the coord location.

A simpler way of controling the ticks and annotations with custom settings is to use the xticks option (same for yticks and zticks). Here, one give a tuple with annotations interval and labels. E.g. xticks=(1:5, ["a", "b", "c", "d"]) where first element is an AbstractArray and second an array or tuple of strings or symbols. The more elaborate effect described above for the custom options is achieved here by escaping the a or i, f, and g codes with a forward slash in a text string. Example: xticks=(1:5, ["a", "f", "/ag e", "f", "/ag @~p@~"]). Here "/ag e" means annotate the third value with e and add a grid line. These x|y|zticks options work only for the primary axes. To change the secondary use the customtics form. E.g. xaxis2=(customticks(...),). Note that the ticks keyword is already taken to control the ticks interval hence the need to use a different one (customticks).

For non-geographical projections: Give negative scale or figure sizes to change the direction of increasing coordinates. For example figsize(-10,-8) will revert the sense of xx and yy axes.

For log10 axes: Annotations can be specified in one of three ways:

  1. stride can be 1, 2, 3, or -n. Annotations will then occur at 1, 1-2-5, or 1-2-3-4-...-9, respectively; for -n we annotate every n't magnitude. This option can also be used for the frame and grid intervals.

  2. Use log=true, then log10 of the tick value is plotted at every integer log10 value.

  3. Use 10log=true, or pow=true then annotations appear as 10 raised to log10 of the tick value.

For power axes: Annotations can be specified in one of two ways:

  1. stride sets the regular annotation interval.

  2. Use exp=true, then, the annotation interval is expected to be in transformed units, but the annotation value will be plotted as untransformed units. E.g., if stride = 1 and power = 0.5 (i.e., sqrt), then equidistant annotations labeled 1-4-9... will appear.

Finally, if your axis is in radians you can use multiples or fractions of pi to set such annotation intervals. The format is pi=n or pi=(n,m), for an optional integer n and optional m fractions 2, 3, or 4.

These GMT parameters can affect the appearance of the map boundary: MAP_ANNOT_MIN_ANGLE, MAP_ANNOT_MIN_SPACING, FONT_ANNOT_PRIMARY, FONT_ANNOT_SECONDARY, MAP_ANNOT_OFFSET_PRIMARY, MAP_ANNOT_OFFSET_SECONDARY, MAP_ANNOT_ORTHO, MAP_FRAME_AXES, MAP_DEFAULT_PEN, MAP_FRAME_TYPE, FORMAT_GEO_MAP, MAP_FRAME_PEN, MAP_FRAME_WIDTH, MAP_GRID_CROSS_SIZE_PRIMARY, MAP_GRID_PEN_PRIMARY, MAP_GRID_CROSS_SIZE_SECONDARY, MAP_GRID_PEN_SECONDARY, FONT_TITLE, FONT_LABEL, MAP_LINE_STEP, MAP_ANNOT_OBLIQUE, FORMAT_CLOCK_MAP, FORMAT_DATE_MAP, FORMAT_TIME_PRIMARY_MAP, FORMAT_TIME_SECONDARY_MAP, GMT_LANGUAGE, TIME_WEEK_START, MAP_TICK_LENGTH_PRIMARY, and MAP_TICK_PEN_PRIMARY

Axes options table

The entire parameters collection is displayed in the following table

keywordvaluetypemeaning
axesfalseStr or SymbDo not plot any axis
noannot|bareStr or SymbPlot axes but no annot
left_fullStr or SymbAnnot and tick left axis
left_ticksStr or SymbTick left axis
left_bareStr or SymbJust draw left axis
bottom_fullStr or SymbSame for bottom axis
right_fullStr or SymbSame for right axis
top_fullStr or SymbSame for top axis
up_fullStr or SymbSame for z axis
WESNwesn...Str or SymbThe classic GMT syntax
corners1234Str or SymbVertical axis
secondarytrue or falseBoolSecondary axis info
fillcolorStr or SymbPaint interior
cubeanythingSym or BoolDraw outline of the 3-D cube
noframeanythingSym or BoolNo frame and annotations at all
polelon latStr or TupleDraw oblique gridlines abot pole
titlethe titleStr or SymbAdd a plot title
labelaxis labelStr or SymbAdd a label to an axis
Yhlabely-axis hlabelStr or SymbHorizontal label for y-axes
prefixannot prefixStr or SymbAnnot leading text prefix
suffixannot suffixStr or SymbAnnot trailing text suffix
xlabelx-axis labelStr or SymbAdd a label to X axis
ylabely-axis labelStr or SymbAdd a label to Y axis
zlabelz-axis labelStr or SymbAdd a label to Z axis
xticksx-axis ticksTupleAdd custom ticks/annotations to X axis
yticksy-axis ticksTupleAdd custom ticks/annotations to Y axis
zticksz-axis ticksTupleAdd custom ticks/annotations to Z axis
customticksxyz ticks
seclabelsecond labelStr or SymbAdd a seconadry label to X
annotannot intervalSymb or NumAnnot stride interval
tickstick intervalSymb or NumTick interval
gridgrid intervalSymb or NumGrid lines interval
slantedx-annot angleSymb or NumAngle of slanted annotations
phase_addxxNumbShifts right the annot interval
phase_subxxNumbShifts left the annot interval
annot_unitannot unitStr or SymbUnit of the stride
customcustom annotStr or SymbCustom annotations file
pin or (n,m)Num or TupleIf axis is in radians
scalelogStr or Symblog10 of the tick value
10log or powStr or SymbAnnot as 10 raised to log10
expStr or SymbAnnot interval in transformed units

[1] However, the original GMT compact syntax can also be used. I.e, axes=:a, or frame=:WSen or frame="a1Of1d WS" also work.

-B GMT doc

Examples

Demonstrates use of dual (left vs right, bottom vs top) Cartesian axis labels

using GMT
basemap(limits=(0,50,0,7), figsize=10,
        xaxis=(annot=:auto, ticks=:auto, label="Bottom Label", seclabel="Top label"),
        yaxis=(annot=:auto, ticks=:auto, label="Left label", seclabel="Right label"), show=1)

we can obtain the same result with a slightly shorter version of the above that shows how can mix frame and xaxis calls.

basemap(limits=(0,50,0,7), figsize=8,
        frame=(annot=:auto, ticks=:auto, xlabel="Bottom Label", ylabel="Left label"),
        xaxis=(seclabel="Top label",), yaxis=(seclabel="Right label",), show=1)

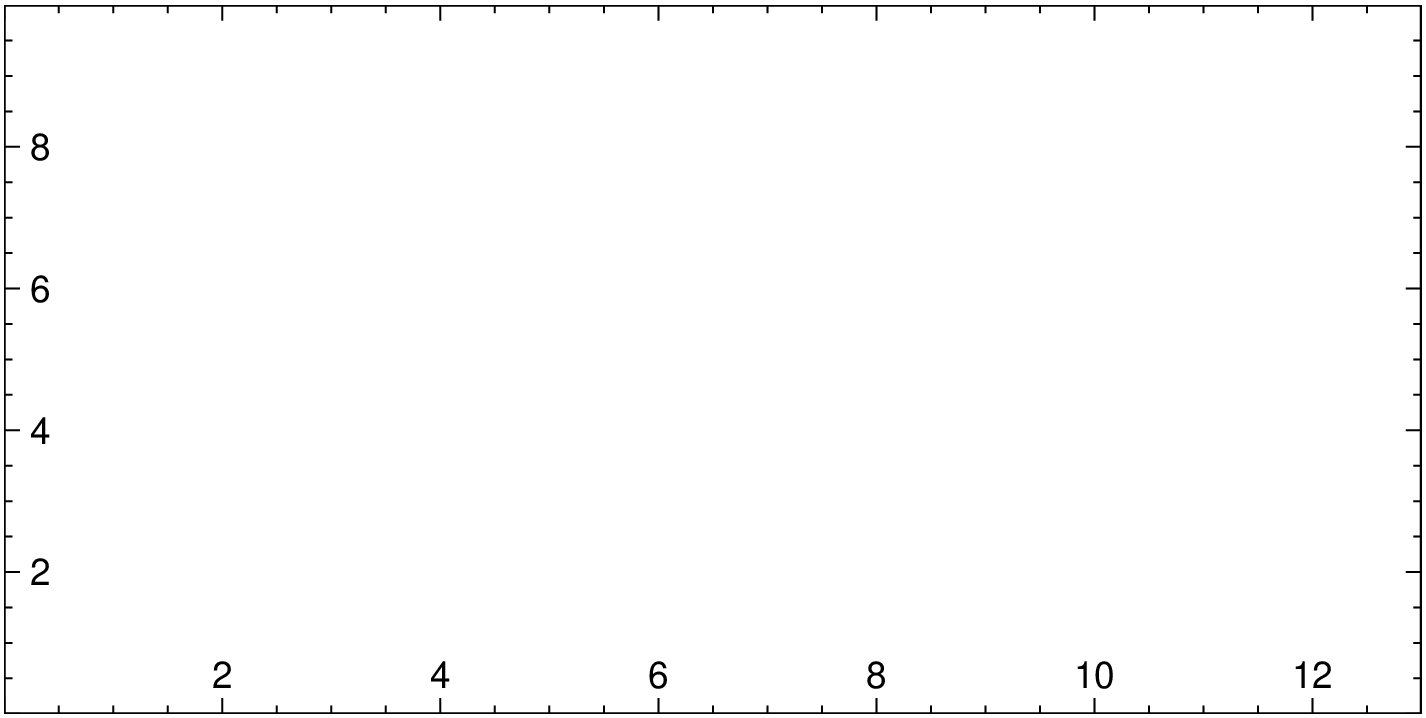

Show inside labeling (use default fig size).

using GMT
basemap(limits=(0,13,0,10), frame=(annot=2, ticks=0.5), figsize=(12,6), par=(:MAP_FRAME_TYPE,:inside), show=1)

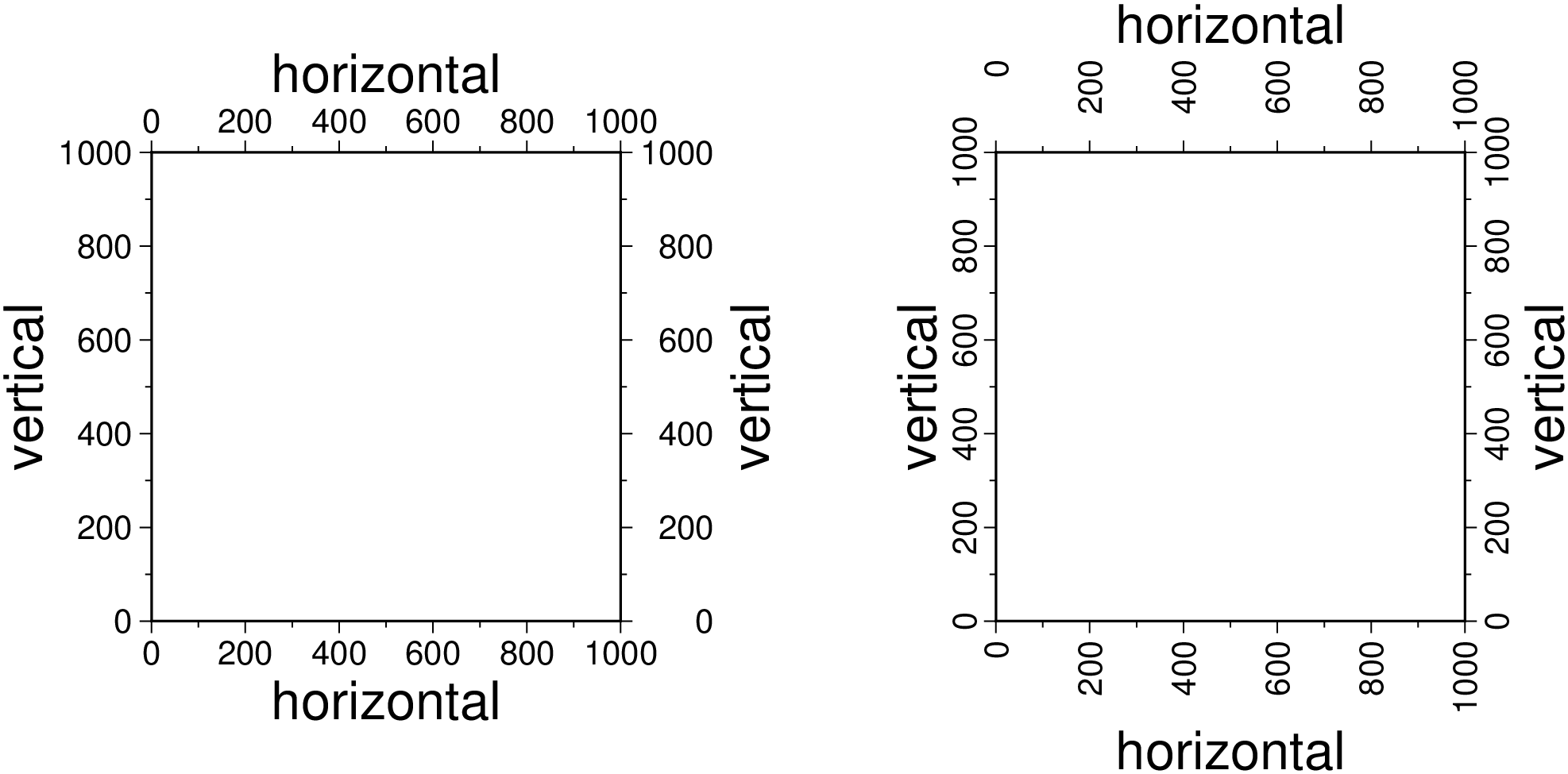

Show horizontal and vertical annotations

using GMT
basemap(region=[0 1000 0 1000], figsize=5,
        frame=(axes=(:left_full,:bottom_full,:right_full,:top_full), annot=200,
               ticks=100, xlabel=:horizontal, ylabel=:vertical),
        par=(FONT_ANNOT_PRIMARY=10, FONT_LABEL=16, MAP_ANNOT_ORTHO=:we))

basemap!(frame=(axes=(:left_full,:bottom_full,:right_full,:top_full), annot=200,
                ticks=100, xlabel=:horizontal, ylabel=:vertical),
         par=(FONT_ANNOT_PRIMARY=10, FONT_LABEL=16, MAP_ANNOT_ORTHO=:sn),
         x_offset=9, show=1)

Show Yhlabel for horizontal labels for y-axis

using GMT
basemap(region="-30/30/-20/20", figsize=(12,8),
        frame=(annot=:a, ticks=:a, xlabel="Standard horizontal label", Yhlabel="@~Y(q)@~",
               title="Vertical Y-axis label"), show=1)


spacing

  • I or inc or increment or spacing : – inc=x_inc | inc=(xinc, yinc) | inc="xinc[+e|n][/yinc[+e|n]]"

    • Geographical (degrees) coordinates:
      Optionally, append an increment unit. Choose among m to indicate arc minutes or s to indicate arc seconds. If one of the units e, f, k, M, n or u is appended instead, the increment is assumed to be given in meter, foot, km, mile, nautical mile or US survey foot, respectively, and will be converted to the equivalent degrees longitude at the middle latitude of the region (the conversion depends on PROJ_ELLIPSOID). If y_inc is given but set to 0 it will be reset equal to x_inc; otherwise it will be converted to degrees latitude.

    • All coordinates:
      If +e is appended then the corresponding max x (east) or y (north) may be slightly adjusted to fit exactly the given increment [by default the increment may be adjusted slightly to fit the given domain]. Finally, instead of giving an increment you may specify the number of nodes desired by appending +n to the supplied integer argument; the increment is then recalculated from the number of nodes, the registration, and the domain. The resulting increment value depends on whether you have selected a gridline-registered or pixel-registered grid; see GMT File Formats for details.

    Note: If region=grdfile or region=GMTgrid is used then the grid spacing and the registration have already been initialized; use spacing and registration to override these values.

limits

  • R | region | limits | xlimits,ylimits | regiondiag | limitsdiag

    xmin, xmax, ymin, and ymax specify the region of interest (aka, BoundingBox). For geographic regions, these limits correspond to west, east, south, and north and you may specify them in decimal degrees or in [+|-]dd:mm[:ss.xxx][W|E|S|N] format or pass them in as a string argument. When it's a string the shorthands region="global" and region="global360" are equivalent to region=[-180 180 -90 90] and region=[0 360 -90 90] respectively.

    Use the region_diag or limits_diag (or yet region_llur or limits_llur) to indicate that the limits are to be passed to GMT as xmin, ymin, xmax, ymax. This form may be needed when dealing with certain map projections.

    Using the form region = [xmin xmax ymin ymax [zmin zmax]] or the equivalent tuple alternative covers the largest chunk of user cases. However, for fine tunning the limits setting we have an extended syntax that involves the use of Named Tuples. This involves a NamedTuple keyword that can have any of the following members name/value:

    • region=xx or limits=xx – where xx is a string is interpreted as a GMT -R syntax string.

    • lmits, region – a four (or six) elements array or tuple with xmin, xmax, ymin, ymax [zmin zmax]

    • limits_diag, region_diag – a four elements array with xmin, ymin, xmax, ymax

    • diag=true – makes the region mean region_diag

    • cont or continents=continent name where continent name is any of: Africa, Antarctica, Asia, Europe, Oceania, North America or South America (or the shorthands: AF, AN, AS, EU, OC, NA, SA). This sets the geographic limts covered by these continents.

    • ISO=code – use ISO country codes from the Digital Chart of the World. Append one or more comma-separated countries using the 2-character ISO 3166-1 alpha-2 convention. To select a state of a country (if available), append .state, e.g, US.TX for Texas.

    • adjust=xx – where xx is either a String, a Number or an Array/Tuple to set an inc, xinc yinc, or winc einc sinc ninc to adjust the region to be a multiple of these steps steps.

    • pad=xx, extend=xx or expand=xx – same as above but extend the region outward by adding these increments instead.

    • unit=val – use Cartesian projected coordinates compatible with the chosen projection. Append the length unit (e.g. "k" for kilometer). These coordinates are internally converted to the corresponding geographic (longitude, latitude) coordinates for the lower left and upper right corners. This form is convenient when you want to specify a region directly in the projected units (e.g., UTM meters). For Cartesian data in radians you can also use [+|-][s]pi[f], for optional integer scales s and fractions f.

    The xlimts, ylimits is used to break the specification into two pairs but it won't support all the options of the limits functionality.

    -R GMT doc


proj

  • J | proj | projection : proj=<parameters>

Select map projection. The following table describes the projections available as well as extra parameters needed to set a specific projection. If the proj argument is a string then it is assumed that it contains a full GMT -J style specification. Please refer to the GMT manual to learn how that works. -J GMT doc In the table, the center column indicates if a projection needs to set a projection center or if that is optional (when the parameters are under []). Several projections not to set also the standard paralalle(s). Those are indicated by a non-empty parallels column. Still, other projections accept an optional horizon parameter, which is an angle that specifies the max distance from projection center (in degrees, <= 180, default 90) that is plotted.

Given the different needs to specify a projection we can either use a simple form when only the projection name is required, e.g. proj=Mercator or in the more elaborated cases, a named tuple with fields name, center, horizon, parallels. An example of this later case would be to set an Oblique Mercator projection with center at 280ºW, 25.5ºN and standard parallels at 22 and 60ºN. We would do that with proj=(name=:omercp, center=[280 25.5], parallels=[22 69]). Note that we can either use arrays or tuples to specify pairs of values.

In case the central meridian is an optional parameter and it is being omitted, then the center of the longitude range given by the limits option is used. The default standard parallel is the equator.

For linear (Cartesian) projections one can use proj=:linear but the simplest is just to omit the projection setting, which will default to a fig with of 15 cm. To set other fig dimensions, use the figsize specification with figsize=(width, height) (both numeric or string) or just figsize=width and the height is computed automatically from the fig limits aspect ratio. We can also specify the scale separately: e.g. figscale=x, figscale=1:xxxx. As mentioned, when no size is provided a default width value of 15 cm is assumed.

For logarithm and power axes use logx, logy or loglog to take log10 of values before scaling, and powx and/or powy to to raise values to power before scaling.

When specifying a figsize, the UNIT is cm by default but it can be overridden by appending i, or p to the scale or width values. Append h, +, or - to the given width if you instead want to set map height, the maximum dimension, or the minimum dimension, respectively [Default is w for width]. Off course, when these settings are used, the argument to figsize must be in the form of strings.

The ellipsoid used in the map projections is user-definable by editing the gmt.conf file in your home directory. 73 commonly used ellipsoids and spheroids are currently supported, and users may also specify their own custom ellipsoid parameters [Default is WGS-84]. Several GMT parameters can affect the projection: PROJ_ELLIPSOID, GMT_INTERPOLANT, PROJ_SCALE_FACTOR, and PROJ_LENGTH_UNIT; see the gmt.conf man page for details.

See GMT Map Projections for a list of projection examples

namecenterhorizonparallelsGMT codeDescription
aea, Albertslon_0lat_0NAlat_1lat_2Blon_0/lat_0/lat_1/lat_2Albers conic equal area
aeqd, azimuthalEquidistantlon_0lat_0yesNAElon_0/lat_0Azimuthal equidistant
Cyl_stere, cylindricalStereographic[lon_0[lat_0]]NANACyl_stere[lon_0[/lat_0]]Cylindrical stereographic
cass, Cassinilon_0lat_0NANAClon_0/lat_0Cassini cylindrical
cea, cylindricalEqualarealon_0lat_0NANAYlon_0/lat_0Cylindrical equal area
eqdc, conicEquidistantlon_0lat_0NAlat_1lat_2Dlon_0/lat_0/lat_1/lat_2Equidistant conic
eqc, PlateCarree, equidistant[lon_0[lat_0]]NANAQ[lon_0[/lat_0]]Equidistant cylindrical
eck4, EckertIV[lon_0]NANAKf[lon_0]Eckert IV equal area
eck6, EckertVI[lon_0]NANAKs[lon_0]Eckert VI equal area
gnom, Gnomoniclon_0lat_0yesNAFlon_0/lat_0Azimuthal gnomonic
hamm, Hammer[lon_0]NANAH[lon_0]Hammer equal area
laea, lambertAzimuthallon_0lat_0yesNAAlon_0/lat_0Lambert azimuthal equal area
lcc, lambertConiclon_0lat_0NAlat_1lat_2Llon_0/lat_0/lat_1/lat_2Lambert conic conformal
lin, LinearNANAX[lpexp
logx, logy, loglogXlLog
powx, powyXp expPower
merc, Mercator[lon_0[lat_0]]NANAM[lon_0[/lat_0]]Mercator cylindrical
mill, Miller[lon_0]NANAJ[lon_0]Miller cylindrical
moll, Molweide[lon_0]NANAW[lon_0]Mollweide
omerc, obliqueMerc1lon_0lat_0NAazimOalon_0/lat_0/azimOblique Mercator, 1: origin and azim
omerc2, obliqueMerc2lon_0lat_0NAlon_1lat_1Oblon_0/lat_0/lon_1/lat_1Oblique Mercator, 2: two points
omercp, obliqueMerc3lon_0lat_0NAlon_plat_pOclon_0/lat_0/lon_p/lat_pOblique Mercator, 3: origin and pole
ortho, Orthographiclon_0lat_0yesNAGlon_0/lat_0Azimuthal orthographic
poly, PolyConic[lon_0[lat_0]]NANAPoly[lon_0[/lat_0]](American) polyconic
robin, Robinson[lon_0]NANAN[lon_0]Robinson
stere, Stereographiclon_0lat_0yesNASlon_0/lat_0General stereographic
sinu, Sinusoidal[lon_0]NANAI[lon_0]Sinusoidal equal area
tmerc, transverseMercator[lon_0[lat_0]]NANAT[lon_0[/lat_0]]Transverse Mercator
utmxx, UTMxxNANANAUzoneUniversal Transverse Mercator (UTM)
vand, VanDerGritten[lon_0]NANAV[lon_0]Van der Grinten
win, WinkelTripel[lon_0]NANAR[lon_0]Winkel Tripel

-J GMT doc


timestamp

  • U | timestamp | time_stamp : timestamp=(just="code", pos=(dx,dy), label="label", com=true)

    Draw Unix System time stamp on plot. By adding [just ]/dx/dy/, the user may specify the justification of the stamp and where the stamp should fall on the page relative to lower left corner of the plot. For example, BL/0/0 will align the lower left corner of the time stamp with the lower left corner of the plot [LL]. Optionally, append a label, or c (which will plot the command string.). The GMT parameters MAP_LOGO, MAP_LOGO_POS, and FORMAT_TIME_STAMP can affect the appearance; see the gmt.conf man page for details. The time string will be in the locale set by the environment variable TZ (generally local time).

    -U GMT doc


verbose

  • V | verbose : verbose=true | verbose=level

    Select verbose mode, which will send progress reports to stderr. Choose among 6 levels of verbosity; each level adds more messages:

    • q – Complete silence, not even fatal error messages are produced.

    • n – Normal verbosity: produce only fatal error messages.

    • c – Produce also compatibility warnings (same as when verbose is omitted).

    • v – Produce also warnings and progress messages (same as verbose only).

    • l – Produce also detailed progress messages.

    • d – Produce also debugging messages.


xshift

  • X | x_offset | xshift : xshift=[] | xshift=x-shift | xshift=(shift=x-shift, mov="a|c|f|r")

yshift

  • Y | y_offset | yshift : yshift=[] | yshift=y-shift | yshift=(shift=y-shift, mov="a|c|f|r")

    Shift plot origin relative to the current origin by (x-shift, y-shift) and optionally append the length unit (c, i, or p). This second case (with units) implies that x-shift must be a string. To make non-default sifts, use the form xshift=(shift=x-shift, mov="a|c|f|r") where a shifts the origin back to the original position after plotting; c centers the plot on the center of the paper (optionally add shift); f shifts the origin relative to the fixed lower left corner of the page, and r [Default] to move the origin relative to its current location. For overlays the default (x-shift, y-shift) is (r0), otherwise it is (r1i). When xshift or yshift are used without any further arguments, the values from the last use of that option in a previous GMT command will be used. Note that xshift and yshift can also access the previous plot dimensions w and h and construct offsets that involves them. For instance, to move the origin up 2 cm beyond the height of the previous plot, use yshift="h+2c". To move the origin half the width to the right, use xshift="w/2".

perspective

  • p | view | perspective : view=(azim, elev)
    Selects perspective view and sets the azimuth and elevation of the viewpoint (180,90). When view is used in consort with Jz or JZ, a third value can be appended which indicates at which z-level all 2D material, like the plot frame, is plotted (in perspective). [Default is at the bottom of the z-axis].

    -p GMT doc

Spherical distance

  • j | spheric | spheric_dist : – spheric=:e|:f|:g
    Determine how spherical distances are calculated in modules that support this. By default (spheric=:g) we perform great circle distance calculations and parameters such as distance increments or radii will be compared against calculated great circle distances. To simplify and speed up calculations you can select Flat Earth mode (spheric=:f) which gives an approximate and fast result. Alternatively, you can select ellipsoidal (spheric=:e) or geodesic mode for the highest precision (and slowest calculation time). All spherical distance calculations depends on the current ellipsoid (PROJ_ELLIPSOID), the definition of the mean radius (PROJ_MEAN_RADIUS), and the specification of latitude type (PROJ_AUX_LATITUDE). Geodesic distance calculations is also controlled by method (PROJ_GEODESIC).

interp

  • n | interp | interpol : interp=(Bspline=true, bicubic=true, bilinear=true, nearneighbor=true, aliasing=true, antialiasing=true, bc=?, clipz=true, threshold=?)
    Select grid interpolation mode by adding B-spline smoothing, bicubic interpolation, bilinear interpolation, or near-neighbor (for example to plot categorical data). Optionally, append antialiasing to switch on antialiasing (where supported) or aliasing to leave it out (in grdproject). Append bc to override the boundary conditions used, adding g for geographic, p for periodic, or n for natural boundary conditions. For the latter two you may append x or y to specify just one direction, otherwise both are assumed. Append clipz to clip the interpolated grid to input z-min/max [Default may exceed limits]. Append threshold=val to control how close to nodes with NaNs the interpolation will go. A threshold of 1.0 requires all (4 or 16) nodes involved in interpolation to be non-NaN. 0.5 will interpolate about half way from a non-NaN value; 0.1 will go about 90% of the way, etc. [Default is bicubic interpolation with antialiasing and a threshold of 0.5, using geographic (if grid is known to be geographic) or natural boundary conditions].

    -n GMT doc
