(19) Color patterns on maps

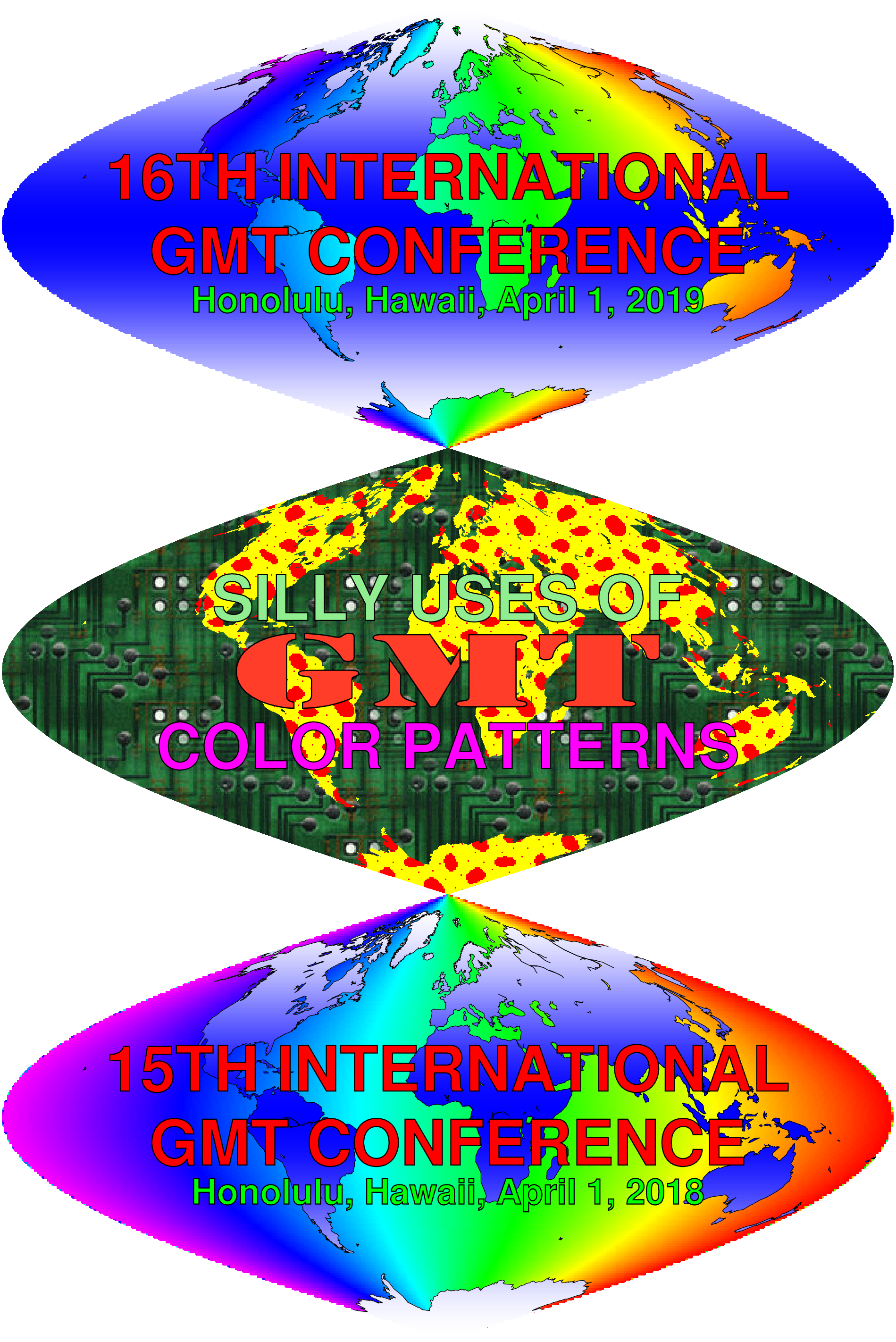

GMT supports color patterns and this example gives a few cases of how to use this new feature. We make a phony poster that advertises an international conference on GMT in Honolulu. We use grdmath, [makecpt], and [grdimage] to draw pleasing color backgrounds on maps, and overlay [coast] clip paths to have the patterns change at the coastlines. The middle panel demonstrates a simple coast call where the built-in pattern # 86 is drawn at 100 dpi but with the black and white pixels replaced with color combinations. At the same time the ocean is filled with a repeating image of a circuit board (provides in PNG raster format). The text GMT in the center is an off-line PostScript file that was overlaid using [image]. The final panel in the 3 by 1 [subplot] sequence repeats the top panel except that the land and sea images have changed places.

using GMT
GMT.resetGMT() # hide

Glat = gmt("grdmath -Rd -I1 -r Y COSD 2 POW =")
Glon = gmt("grdmath -Rd -I1 -r X =")
lat_cpt = makecpt(color="white,blue", range=(0,1), continuous=true, no_bg=true)
lon_cpt = makecpt(cmap=:rainbow, range=(-180,180))
grdimage(Glat, cmap=lat_cpt, frame=:none, interp=:l, proj=:sinu, figsize=16, yshift=18)
coast!(area=5000, clip=:land)
grdimage!(Glon, cmap=lon_cpt, interp=:l)
coast!(clip=:end)
coast!(area=5000, shore=:thinnest)
text!(text_record([0 20], "16TH INTERNATIONAL"), font=(32,"Helvetica-Bold","red=thinner"))
text!(text_record([0 -10], "GMT CONFERENCE"), font=(32,"Helvetica-Bold","red=thinner"))
text!(text_record([0 -30], "Honolulu, Hawaii, April 1, 2019"), font=(18,"Helvetica-Bold","green=thinner"))

# Then show example of color patterns and placing a PostScript image
coast!(area=5000, land=(pattern=86, bg=:yellow, fg=:red, dpi=100), water=(pattern="@circuit.png", dpi=100), frame=:none, yshift=-8)
text!(text_record([0 30], "SILLY USES OF"), font=(32,"Helvetica-Bold","lightgreen=thinner"))
text!(text_record([0 -30], "COLOR PATTERNS"), font=(32,"Helvetica-Bold","magenta=thinner"))
psimage!("@GMT_covertext.eps", D="jCM+w3i")

# Finally repeat 1st plot but exchange the patterns
grdimage!(Glon, cmap=lon_cpt, frame=:none, interp=:l, yshift=-8)
coast!(area=5000, clip=:land)
grdimage!(Glat, cmap=lat_cpt, interp=:l)
coast!(clip=:end)
coast!(area=5000, shore=:thinnest)
text!(text_record([0  20], "15TH INTERNATIONAL"), font=(32,"Helvetica-Bold","red=thinner"))
text!(text_record([0 -10], "GMT CONFERENCE"), font=(32,"Helvetica-Bold","red=thinner"))
text!(text_record([0 -30], "Honolulu, Hawaii, April 1, 2018"), font=(18,"Helvetica-Bold","green=thinner"), show=true)
