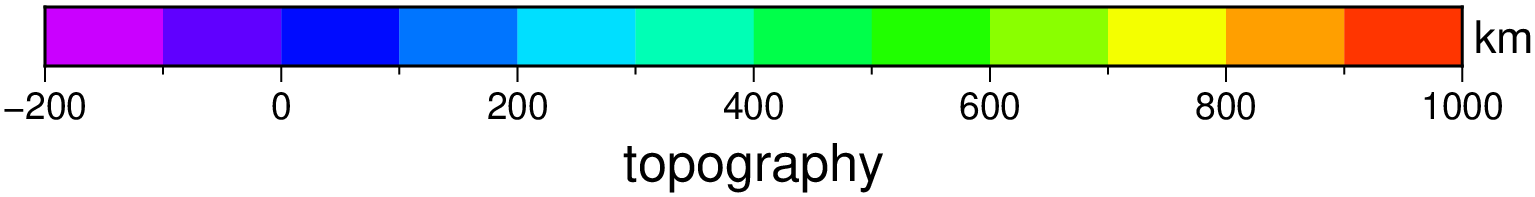

B or axes or frame
Set annotation, tick, and gridline interval for the colorbar. More at [frame] The x-axis label will plot beneath a horizontal bar (or vertically to the right of a vertical bar), except when using the move_annot modifier of the pos option. As an option, use the y-axis label to plot the data unit to the right of a horizontal bar (and above a vertical bar). When using frame=(annot=:auto,) or frame=(annot=:auto,ticks=:auto) annotation and/or minor tick intervals are chosen automatically. If frame is omitted, or no annotation intervals are provided, the default is to annotate every color level based on the numerical entries in the CPT (which may be overridden by ULB flags in the CPT). The exception to this rule is for CPT files that were scaled to fit the range of a grid exactly and thus have arbitrary color levels; these will trigger an automatic frame=(annot=:auto,ticks=:auto) setting. To specify custom text annotations for intervals, you must append ; annotation to each z-slice in the CPT.
C or color or cmap : color=cpt
Note: If not given, the module will check if we have a valid current_cpt stored in memory (makecpt does store it). If there is one, fine, otherwise GMT will error. Where cpt is the CPT to be used. By default all color changes are annotated. To use a subset, add an extra column to the CPT with a L, U, or B to annotate Lower, Upper, or Both color segment boundaries (but see frame). We can understand pattern specifications in the CPT. For CPTs where the z range is in meters, it may be useful to change to another unit when plotting. To do so, append +Uunit to the file name. Likewise, if the CPT uses another unit than meter and you wish to plot the CPT versus meters, append +uunit. If a GMT master dynamic CPT is given instead then its z-range will be set to its default range (if it has one) before plotting.

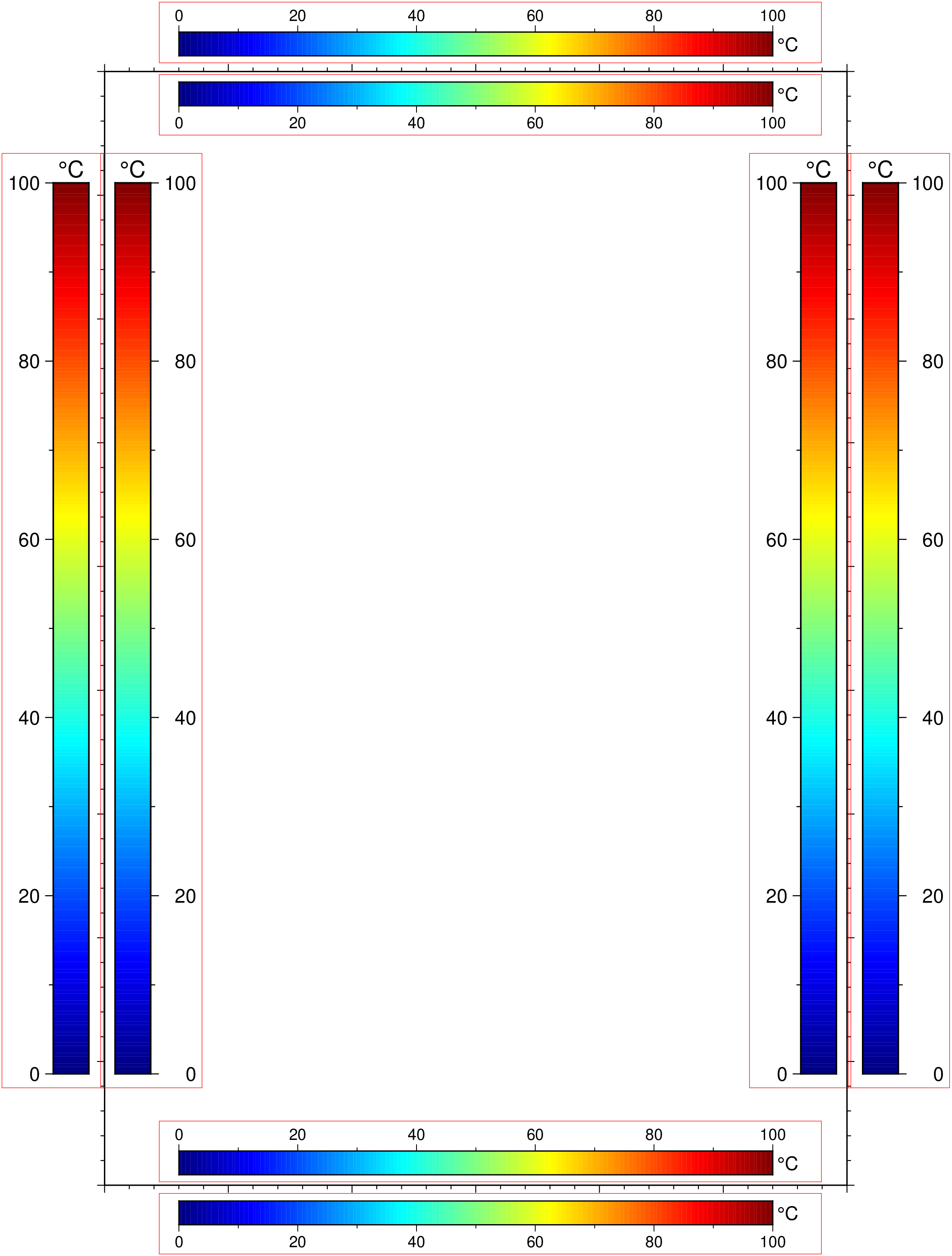

F or box : – box=(clearance=val, fill=color, inner=true, pen=pen, rounded=true, shaded=XX)
Without further options, draws a rectangular border around the scale using MAP_FRAME_PEN; specify a different pen with pen=pen, (see [Pen attributes]). Add fill=color, where color is any valid color setting (see [Setting color]), to fill the scale panel [no fill]. Add clearance=val where val is either gap or (xgap,ygap), or (lgap,rgap,bgap,tgap) where these items are uniform, separate in x- and y-direction, or individual side spacings between scale and border. Use inner=true to draw a secondary, inner border as well. We use a uniform gap between borders of 2p and the MAP_DEFAULTS_PEN unless other values are specified (like inner=“gap/pen”). Add rounded=true to draw rounded rectangular borders instead, with a 6p corner radius. You can override this radius by using another value instead of true. Finally, use shadded=true or shadded=(dx,dy) or shadded=shade to draw an offset background shaded region. Here, dx/dy indicates the shift relative to the foreground frame [4p/-4p]and shade sets the fill style to use for shading (“gray50”).
G or truncate : – truncate=(zlo,zhi)
Truncate the incoming CPT so that the lowest and highest z-levels are to zlo and zhi. If one of these equal NaN then we leave that end of the CPT alone. The truncation takes place before the plotting.
I or shade : – shade=true | shade=max_intens | shade=(low_i,high_i)
Add illumination effects. Optionally, set the range of intensities from - to shade=max_intens. If not specified, 1 is used. Alternatively, use shade=(low,high) intensities to specify an asymmetric range [Default is no illumination].
J or proj or projection : – proj=
Select map projection. More at [proj](../common_opts/opt_J.html)
L or equal or equal_size : – equal=true | equal=(range=true, gap=val)
Gives equal-sized color rectangles. Default scales rectangles according to the z-range in the CPT (Also see zfile). If set, any equal interval annotation set with frame will be ignored. If equal=(gap=val,) is appended and the CPT is discrete we will center each annotation on each rectangle, using the lower boundary z-value for the annotation. If equal=(range=true,) is prepended we annotate the interval range instead. If shade is used then each rectangle will have its constant color modified by the specified intensity.
M or monochrome : – monochrome=true
Force a monochrome graybar using the (television) YIQ transformation.
N or dpi : – dpi=true | *dpi=:p | dpi=number
Controls how the color scale should be encoded graphically. To preferentially draw color rectangles (e.g., for discrete colors), use dpi=:p. Otherwise we will preferentially draw images (e.g., for continuous colors). Optionally use dpi=number** effective dots-per-inch for rasterization of color scales [600].
Q or log : – log=true
Select logarithmic scale and power of ten annotations. All z-values in the CPT will be converted to p = log10(z) and only integer p values will be annotated using the 10^p format [Default is linear scale].
R or region or limits : – limits=(xmin, xmax, ymin, ymax) | limits=(BB=(xmin, xmax, ymin, ymax),) | limits=(LLUR=(xmin, xmax, ymin, ymax),units=“unit”) | …more
Specify the region of interest. More at [limits](../common_opts/opt_R.html). For perspective view view, optionally add zmin,zmax. This option may be used to indicate the range used for the 3-D axes. You may ask for a larger w/e/s/n region to have more room between the image and the axes.
S or nolines or appearance : – nolines=true
Do not separate different color intervals with black grid lines.
U or time_stamp : – time_stamp=true | time_stamp=(just=“code”, pos=(dx,dy), label=“label”, com=true)
Draw GMT time stamp logo on plot. More at [timestamp](../common_opts/opt_U.html)
V or verbose : – verbose=true | verbose=level
Select verbosity level. More at [verbose](../common_opts/opt_V.html)
W or scale : – scale=true
Multiply all z-values in the CPT by the provided scale. By default the CPT is used as is.
X or xshift or x_offset : xshift=true | xshift=x-shift | xshift=(shift=x-shift, mov=“a|c|f|r”)
Shift plot origin. More at [xshift](../common_opts/opt_X.html)
Y or yshift or y_offset : yshift=true | yshift=y-shift | yshift=(shift=y-shift, mov=“a|c|f|r”)
Shift plot origin. More at [yshift](../common_opts/opt_Y.html)
Z or zfile : zfile=“file”
File with colorbar-width per color entry. By default, width of entry is scaled to color range, i.e., z = 0-100 gives twice the width as z = 100-150 (Also see equal).
figname or savefig or name : – figname=name.png
Save the figure with the figname=name.ext where ext chooses the figure image format.
