imcomplement

J = imcomplement(I::GMTimage) -> GMTimage

Compute the complement of the image I and returns the result in J.

I can be a binary, intensity, or truecolor image. J has the same type and size as I. I can also be just a matrix. All types numeric (but complex) are allowed.

In the complement of a binary image, black becomes white and white becomes black. In the case of a grayscale or truecolor image, dark areas become lighter and light areas become darker.

The imcomplement! function works in-place and returns the modified I.

Returns

A new GMTimage

Example

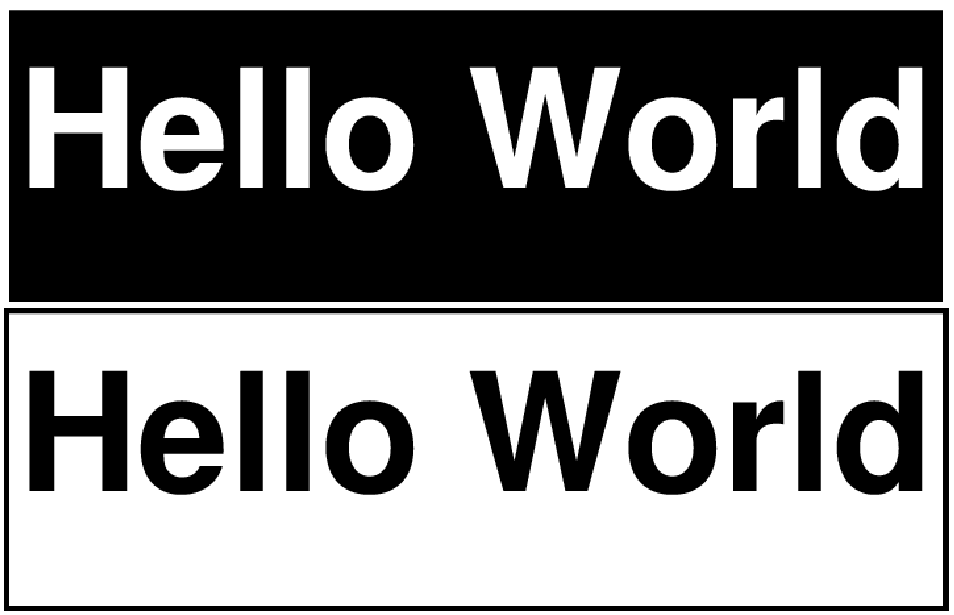

Reverse Black and White in a Binary Image.

using GMT

text(["Hello World"], region=(1.92,2.08,1.97,2.02), x=2.0, y=2.0,
     font=(30, "Helvetica-Bold", :white),
     frame=(axes=:none, bg=:black), figsize=(6,0), name="tmp.png")

# Read only one band (althouh gray scale, the "tmp.png" is actually RGB)
I = gmtread("tmp.png", band=1);
Ic = imcomplement(I);

# Show the two
grdimage(I, figsize=8)
grdimage!(Ic, figsize=8, yshift=-2.57, show=true)

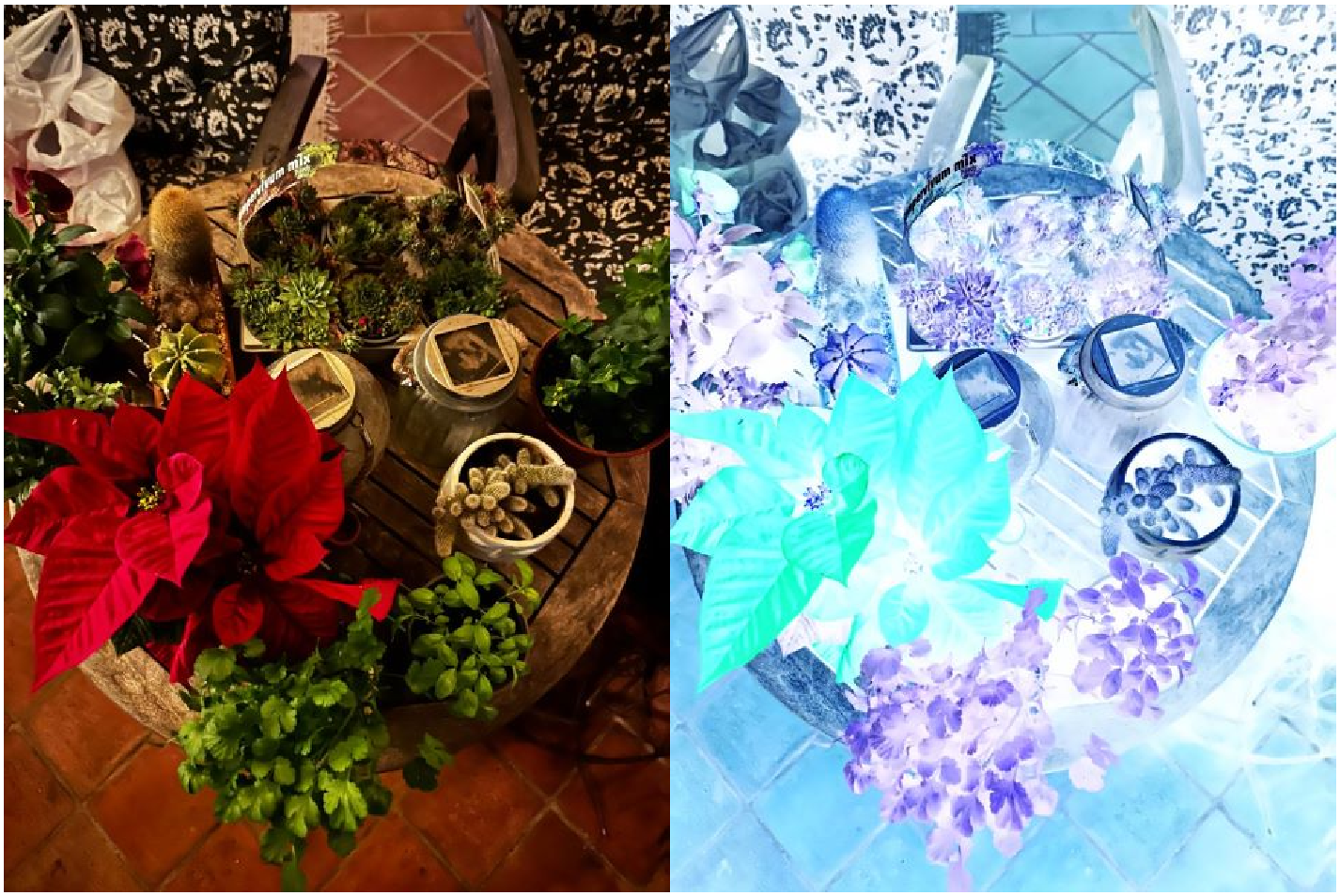

Create the Complement of a Color Image

using GMT

I = gmtread(GMT.TESTSDIR * "assets/table_flowers.jpg");
Ic = imcomplement(I);

grdimage(I, figsize=6)
grdimage!(Ic, figsize=6, xshift=6, show=true)
