Tutorial: Nested Grids

A tsunami model such as NSWING (or COMCOT) runs on a chain of nested grids. A coarse grid covers the whole ocean basin where the wave travels. Each finer grid inside it covers a smaller area near the coast, where the wave shortens and the bathymetry needs more detail. The grids pass the wave to each other along their borders, so they have to line up exactly. Each child grid must tile its parent's cells with no offset. A child that is off by even part of a cell makes the model fail its nesting check.

The Nested grids tool draws rectangles that obey this rule by construction. You draw roughly where you want each level, and every rectangle snaps to its parent's nodes on its own.

The example builds three levels toward the harbour of Portimão, on the south coast of Portugal.

1. Load the bathymetry

Open the bathymetry grid that covers the whole model area (File → Open, or drag the file onto the window). This grid is the root of the chain: NSWING calls it layer0. Here it is @earth_relief_30s over -12/-7/35/38.5, 601 × 421 nodes at 30″ (about 900 m). The coastline (Geography → Plot coastline) is added to make the figures easier to read.

2. Draw the first rectangle

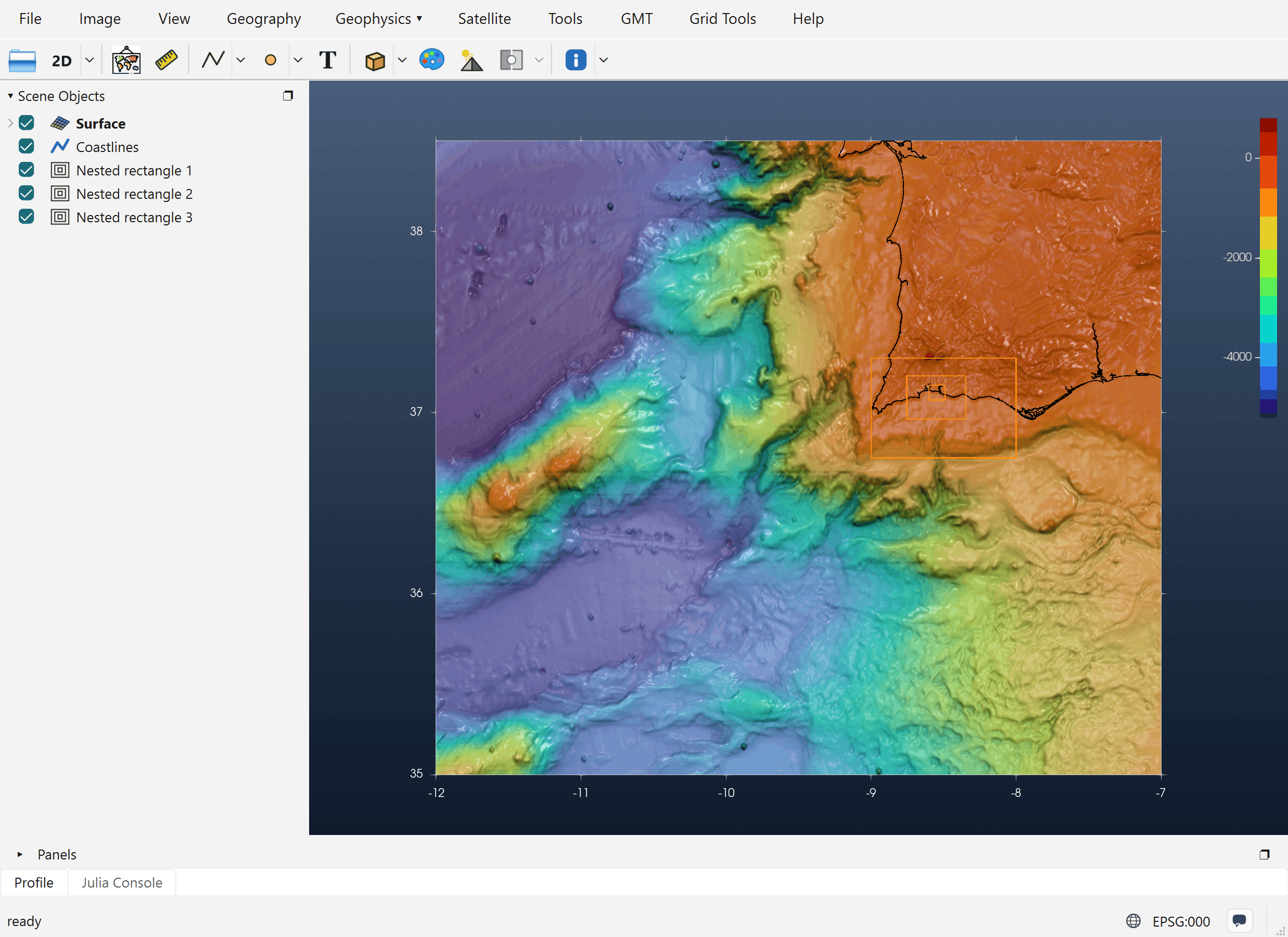

In the Geophysics menu, switch to the Tsunamis discipline (Geophysics › → Tsunamis), then pick Nested grids. The same tool is also in the toolbar's shapes flyout. Click one corner of the area, then the opposite corner.

The rectangle does not stay exactly where you clicked. Each edge moves to the nearest node of the parent grid. The first rectangle keeps the base grid's cell size (30″ here). It marks the part of the bathymetry that the chain starts from.

3. Add finer levels: New nested grid

Right-click the rectangle, either in the view or on its row in Scene Objects. Nested rectangles have their own menu:

New nested grid asks for a refinement factor (default 5). The child's cell size is the parent's divided by that factor, and it first appears over the inner half of the parent. Drag its vertices, or use Rectangle limits (edit)…, to move it where you want it. It snaps back onto the parent's nodes every time. Run New nested grid again for the next level, and so on.

For this example the factor was 5 both times:

How the snapping works

Every edge of a child goes to the nearest parent node. It is then moved half a parent cell outward and half a child cell inward:

west  = parent node − parent_inc/2 + child_inc/2
east  = parent node + parent_inc/2 − child_inc/2

and the same for south and north. The child's nodes then sit at the centres of sub-cells of the parent's cells, which is what NSWING's nesting check expects. That is why layer2's west edge is −8.75333 and not the −8.75 that was drawn: −8.75 is a layer1 node, minus half a 30″ cell, plus half a 6″ cell.

The chain follows the order the rectangles were created in. The first rectangle's parent is the base grid, and every later rectangle's parent is the one made just before it. This decides what happens when you edit the chain:

• Moving or resizing a rectangle re-snaps that rectangle and every rectangle inside it. Its parents never move.
• Deleting a rectangle also deletes every rectangle inside it, together with their grids.

Show nesting info

For layer2 of this example, Show nesting info gives:

-R-8.75333333333/-8.34666666667/36.9633333333/37.2033333333 -I0.00166666666667/0.00166666666667
nx = 245   ny = 145
x_start = 31
x_end = 79
y_start = 27
y_end = 55

x_start … y_end are the parent's (layer1's) node indices, counted from 1, where this level begins and ends. These are the numbers a COMCOT-style set-up file asks for.

4. Create the grids: Create blank grid

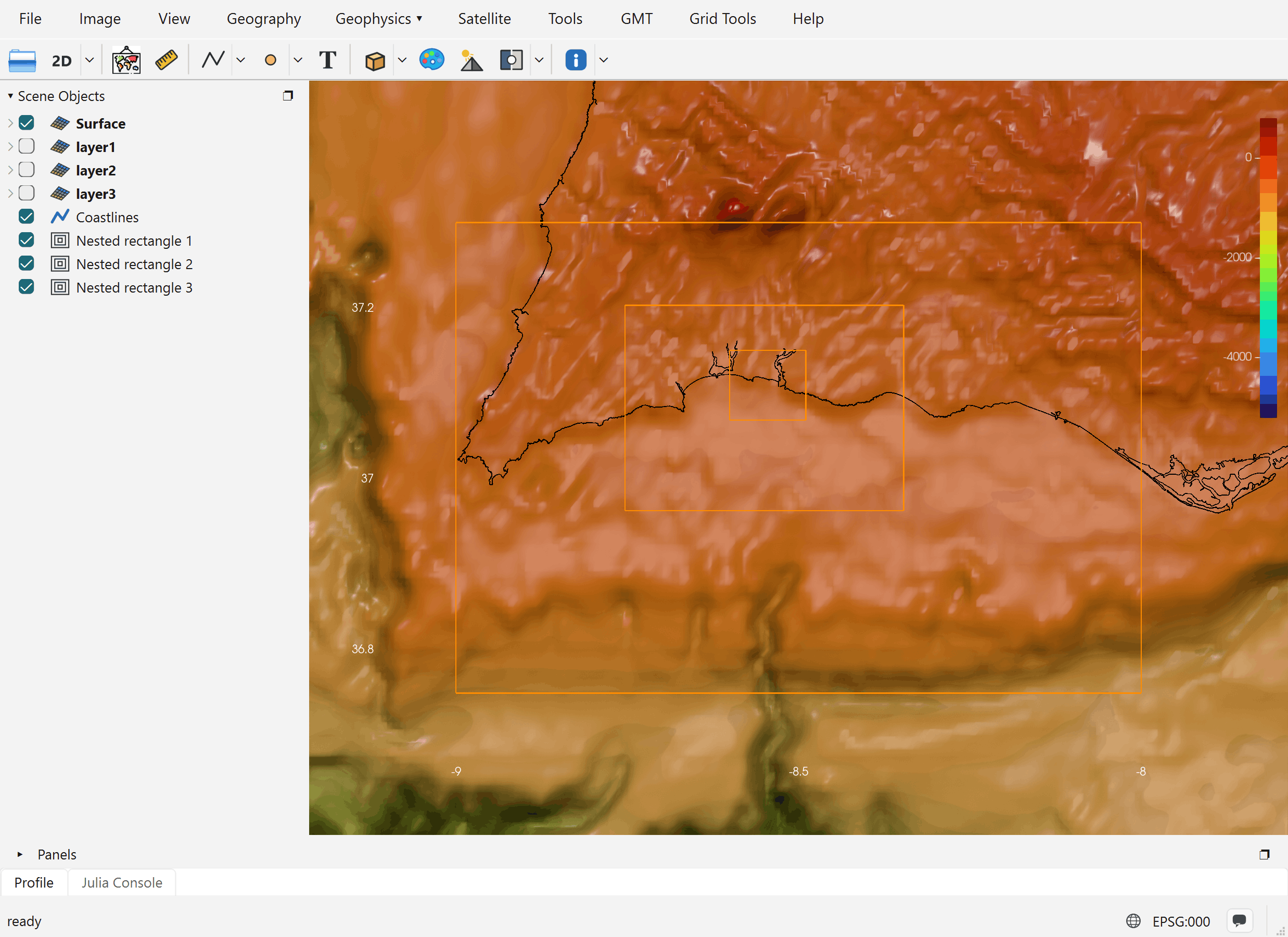

Run Create blank grid on each rectangle (right-click on the rectangle line to see this option). It makes an all-zero grid with exactly that rectangle's limits and cell size and adds it to the same window as layer1, layer2, layer3. The names follow the chain order. The new rows start unchecked (hidden), because the grids hold no data yet.

5. Fill the grids with bathymetry: Transplant 2nd grid…

Right-click a layerN row in Scene Objects and pick Transplant 2nd grid…. The dialog lists the grids already in the window that can fill this level. A grid is listed only if it uses the same kind of coordinates and completely covers the rectangle. Deformation grids (Okada z) and the other nested levels are never listed. External file… picks a grid from disk instead.

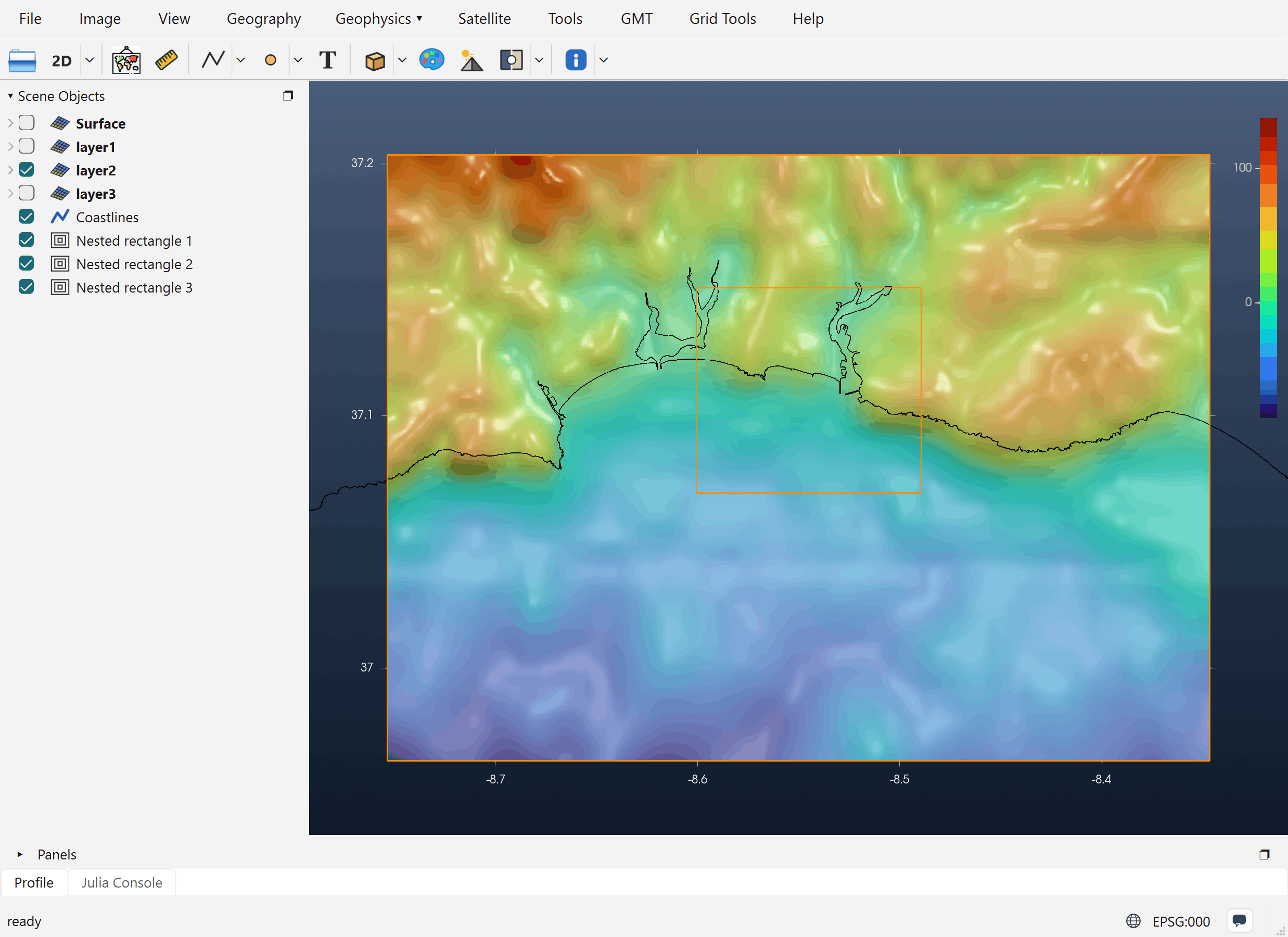

The source is sampled onto the level's own nodes. The grid is then filled with real depths, and it is shown with its own colour scale and axes.

If you move or resize a rectangle after filling its grid, run Transplant 2nd grid… again. The level is rebuilt at the rectangle's new size and refilled.

6. Run the model

Open Tsunamis → NSWING tsunami…. The bathymetry (layer0) and the layer1…layerN grids of the window are the model's nesting chain, and the Okada z grid computed in the same window is picked as the Source. Before running, NSWING checks that:

• no level is still blank (all zero);
• every level fits inside its parent and sits on the parent's nodes, as explained above.

When it runs, NSWING writes the levels to disk as layer1.grd, layer2.grd, …. A level opened from such a file keeps its link to its rectangle, so it can still be refilled.

7. Save the session, and save it often

Building a model is a lot of work: the bathymetry, the fault, the deformation, the rectangles and their filled grids. It is extremely recommended to save it as a session with File → Save Session… (an .igmtz file). Save again after each important step, for example after drawing the rectangles, after filling the grids, and after computing the deformation.

File → Load Session… brings the window back as it was, with its contents and the work done so far. You can then carry on or change something (move a rectangle, try another slip) without building everything again. If iGMT or the Julia session closes, a saved session is what you keep.

See also the Catalina Benchmark 1, which runs NSWING on a three-level chain.
